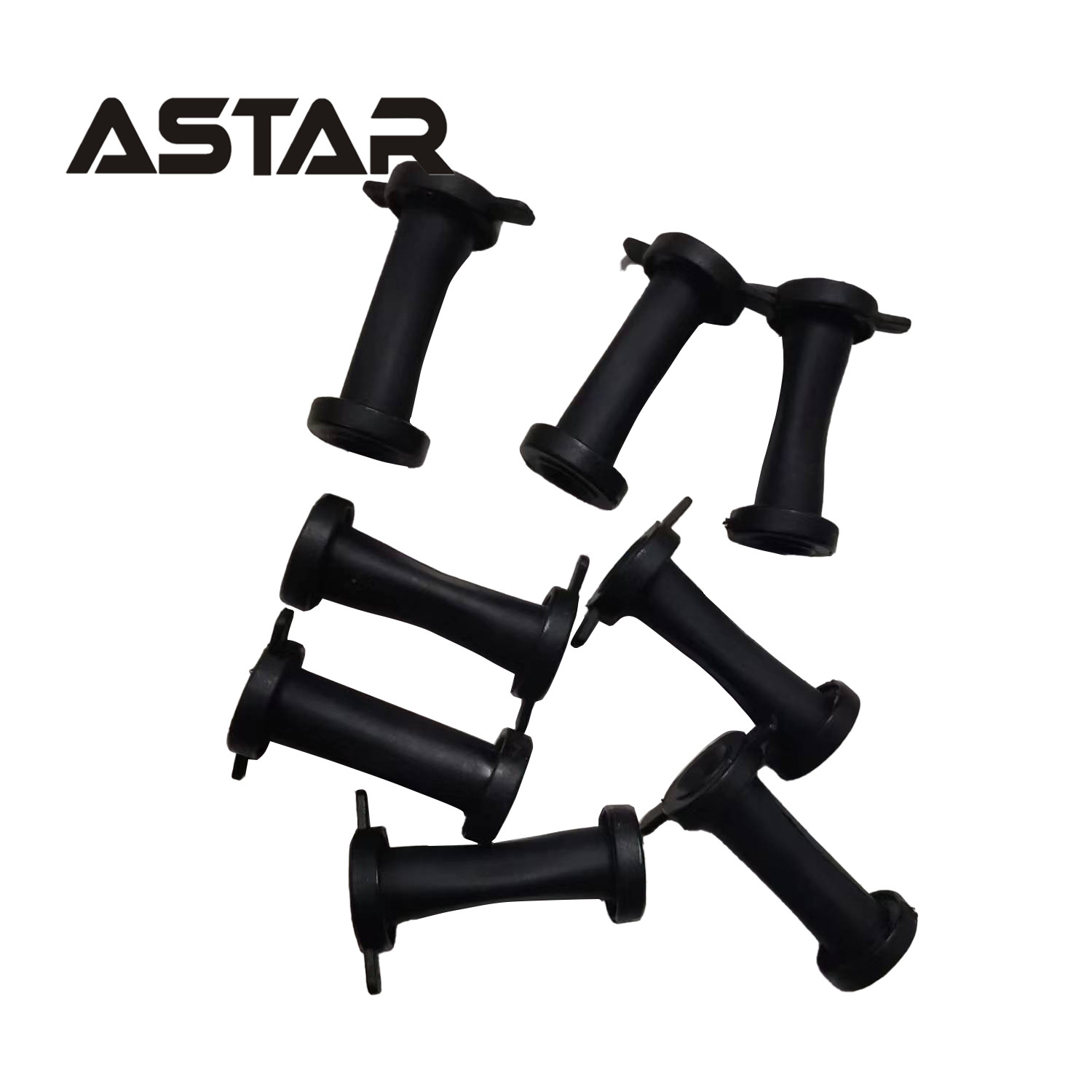

1017438 Pinch valve hose for Application Pump OptiSpray AP01.1
Introduction
This product is built to the latest specification and conforms to the recognized technical safety regulations and is designed for the normal application of powder coating.
Main function is conveying coating powder from or a fluidized container to the powder gun.
The Application pump is intended for conveying coating powder (no enamel) to the powder gun. The coating guns to be used must be equipped with the appropriate spraying air function or with an appropriate diffuser adapter.
The following components or modules are subject to a maintenance plan:
– Pinch valves
– Filter elements
The service life of the filter elements and pinch valves depends on the service duration, the powder quality and the quality of the air supply.
Pinch valve diagnostic
The pinch valve diagnostic is to be carried out, in order to maintain the coating quality or after the error message H89 is displayed.
The prerequisites for the diagnostic:
– Exhaust at suction and conveyance side must be present and in operation
– Powder hopper must be empty
– Cleaning program completed
The pinch valve diagnostic is to start after the cleaning program has been completed!
– The detailed procedure is explicitly described in the CG24-CP,CG23-P, CG12-CP or CG11-P Gun control unit operating instructions.
If the error message H87/H187 (suction pinch valve) or H88/H188 (conveying pinch valve) is displayed after the procedure has been completed, the corresponding pinch valve hoses must be replaced. The pinch valve diagnostic is to start after the cleaning program has been completed!
– The detailed procedure is explicitly described in the CG24-CP, CG23-P, CG12-CP or CG11-P Gun control unit operating instructions.
If the error message H87/H187 (suction pinch valve) or H88/H188 (conveying pinch valve) is displayed after the procedure has been completed, the corresponding pinch valve hoses must be replaced.
Application
Application Pump OptiSpray AP01.1
Quick Details
| Product name | Pinch valve hose | Part number | 1017438 |
| Material | A class rubber | Application | Application Pump OptiSpray AP01.1 |
| Brand | Astar | Color | Black |
| Color | Black | Size | DN5 |
| Pressure | 6 Bar | Working hours | More than 600 hours |
Selling point
1. Original compatible spare parts
2. Long working life
3. Good price with fast delivery
Package
Carton box
